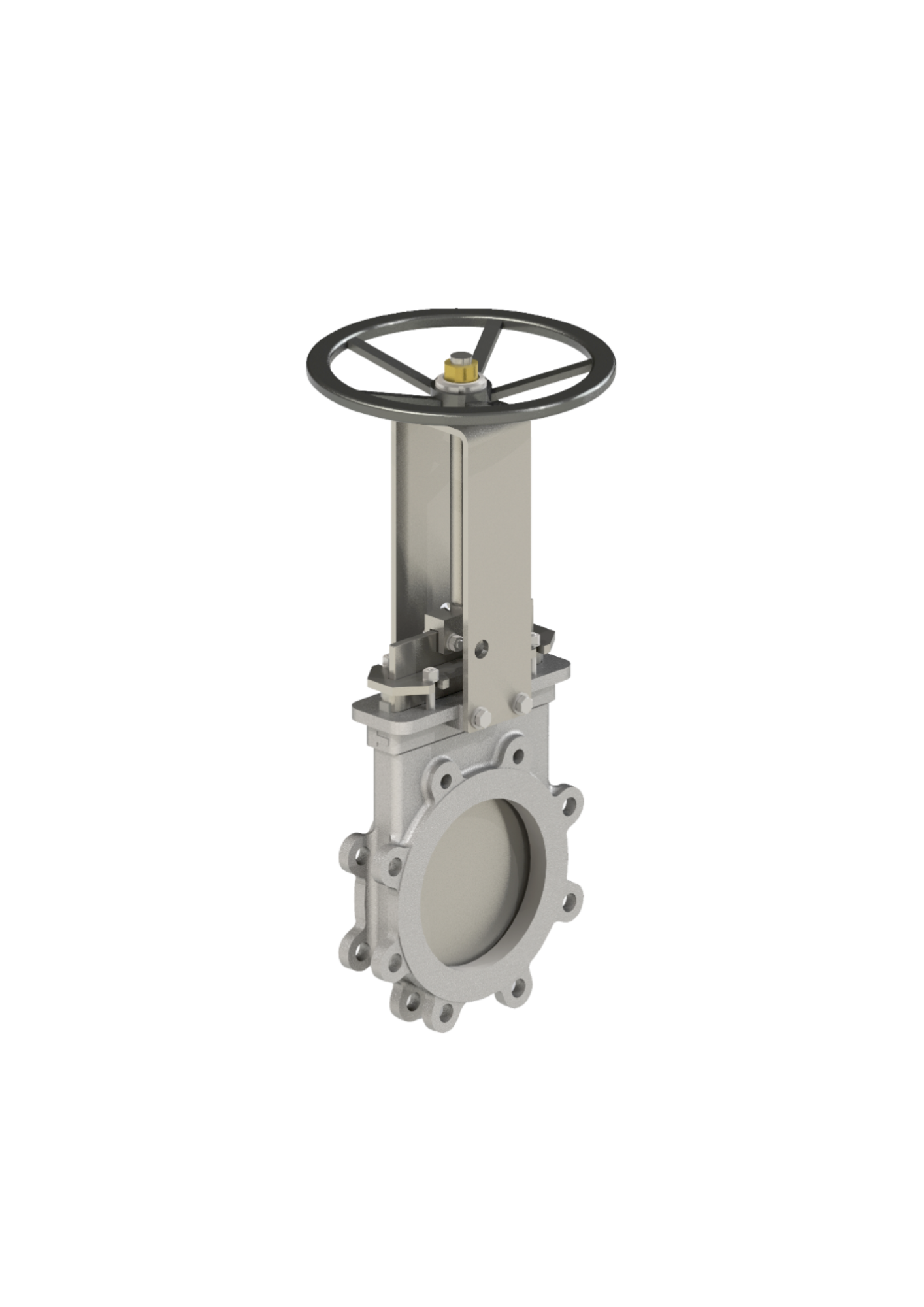

KGM – Uni-Directional Metal Seat

2″ to 48″

MSS SP-81

MSS SP-151

Size Range

Design Standard

Testing Standard

Design Pressure	150 psi (2″ to 24″)	100 psi (26″ to 36″)	75 psi (40″ to 48″)
Drilling Standard	ASME B16.5 up to 24″	ASME B16.47 26″ and above
End Connection	Wafer, Full Lug, Flanged
Application	Pulp and Paper, Power Plants, Mining, Chemical Plants, Wastewater, Food and Beverage
Body Material	CF8 / CF8M / WCB / DI / CI
Gate Material	SS 304 / SS 316 / SS 410
Seat	Metal to Metal
